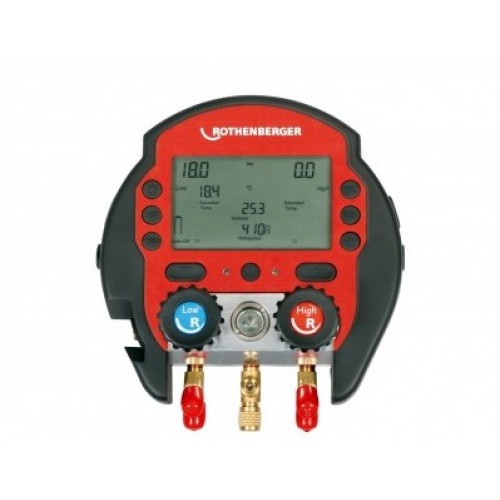

Modular system consists of: base unit upgradable unit DataViewer Red Box with software for recording and interpretation of data and communication with the PC or to update the base unit, external vacuum connexin probe (probe Pirani optional);
More than 70 refrigerants, including R744, stored in the device, allowing the updating of the new device refrigerants;
Calculation of overheating and subcooling simultaneously;
DataViewer software documentation, automatically generates a report on the data recorded, ideal for an evaluation;
External Pirani vacuum probe (optional) allows the direct reading of the vacuum in the refrigerant circuit;
TECHNICAL DATA
Display pressure: bar, psi, kPa, MPa;
Display temperature: ° C, ° F;
Display vacuum: micron mbar, mmHg, Pa, Torr;
Power supply: 9V, 550 mAh;
Screen Size: 4.1 / 3 "/ 11 cm;
Pressure range: -1 to 60 bar;
Accuracy (22 ° C) ± 0.5% FS;
Temperature range: -50 ° C to 200 ° C;
Temperature: -10 ° C to 50 ° C;
Connections: 4 x 1/4 "SAE;
Maximum recording time: 12 o'clock in unit 96h Red Box;
